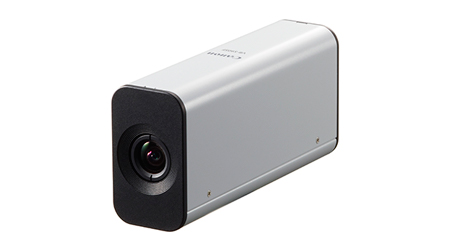

Canon VB-S905F

VB-S905F

A network Mini Fixed Box security camera with ultra-compact lens technology. Its compact design makes it ideal for a range of discrete indoor commercial environments.

VB-S905F

Prednosti

    • Outstandingly compact Mini Fixed Box design
    • 1.3MP resolution
    • CMOS sensor delivers high performance in low light
    • Wide angle f/1.6 Canon lens offers a 96° Angle of View
    • Multi-streaming (2x H.264, 3x MJPEG) in HD or lower resolutions
    • Edge recording/playback from MicroSD card (up to 64GB)
    • Six intelligent in-built analytics
    • Auto Smart Shade Control applies optimum exposure in difficult lighting conditions
    • ONVIF v2.2 and Profile S compliant
    • Ideal in a wide range of indoor commercial environments

Detaljne značajke

Detaljnije pregledajte Canon VB-S905F

HD resolution


The exceptionally compact VB-S905F Mini Fixed Box network security camera features HD (1280 x 720) resolution at 30fps. A CMOS sensor delivers impressive image quality without colour bleeding or blurred lines. Auto Smart Shade Control (SSC) optimises exposure to improve highlights and correct dark areas in back-lit scenes or low light conditions, offering a true Day/Night operation.

Outstanding Canon lens quality


The camera's new ultra-compact wide-angle lens offers a 96° Angle of View. The wide angle and low distortion of the high quality f/1.6 Canon lens delivers more light to the camera's sensor - achieving brighter and better-defined images.

Dual image processors


The dual image processors - DIGIC DV III and DIGIC NET II - enable seamless capturing, processing, encoding and transmitting of images. The internal programming has been re-engineered to deliver multiple H.264 and/or MJPEG streams in HD or lower resolutions. In addition to multi-streaming, the camera can also stream simultaneously. The H.264 encoder creates high-quality and high compression video, for smooth surveillance in a range of environments.

Easy to integrate


The camera integrates seamlessly thanks to its network camera SDK and HTTP protocol specification. Canon is a full member of ONVIF - the industry forum dedicated to the development of a global IP-based physical security interface standard. Compliance with the latest ONVIF V2.2 and Profile S makes it convenient to create a solution with ONVIF-complaint video management software.

Comprehensive on-board analytics


The VB-S905F offers an outstandingly rich set of intelligent features for such a compact device. These include Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection and Volume Detection. Normally, changes in light conditions interrupt a ca

Tehnički podaci proizvoda

Saznajte više o modelu Canon VB-S905F, njegovim značajkama i mogućnostima.

DIGIC NET II

Učinkovita mrežna obrada

Digic DV III

Upravljanje kvalitetom slike i kontrola

1.3 Mega Pixel

Vrlo kvalitetne slike

Intelligent Function

Analiza videosadržaja

Power over Ethernet

Napajanje putem Ethernet veze

microSD

Lokalno snimanje

CCMT

Kontrola više kamera

  • Glavna jedinica VB-S905F
  • CD-ROM za podešavanje postavaka
  • Vodič za instalaciju
  • Jamstveni list
  • Letak s jamstvenim listom

Izračunavanje kuta gledanja

Izračunavanje potrebnog prostora na disku

Camera Layout Simulator (CLS)
